• Luggage rack, roof-mounted with chrome accents
• Luggage rack center rails
• Moldings, color-keyed bodyside, with chrome accents
• Fascia, front, body-color
• Fascia, rear, body-color
• Assist handle, cargo bed ingress
• Assist steps, Black with chrome accents, mounted between front and rear wheels
• Cargo cover, rear rigid, 3-piece composite, stowable onboard
• Utility Enhancement System
• Midgate panel, foldable door between cargo bed and cab, includes removable and stowable rear window
• Headlamps, High-Intensity Discharge (HID) with (T74) Twilight Sentinel and flash-to-pass feature
• Headlamps, Twilight Sentinel automatic delay (Included with HID headlamps.)
• Fog lamps, front rectangular halogen, integral in front fascia
• Daytime Running Lamps, with automatic exterior lamp control
• Tail lamps, LED illumination
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass)
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, color-keyed, with integrated turn signal indicators, ground illumination and programmable to provide curb view when in reverse
• Wipers, front intermittent, RainSense
• Windshield washer fluid system, heated
• Door handles, chrome

• Seats, front bucket with leather seating surfaces, driver and front passenger 14-way power seat adjusters, 4-way power lumbar control, independently heated driver and front passenger seat cushions and seatbacks (3 settings), 2-position driver memory, articulating outboard head restraints and fold-down inboard armrests
• Seats, second row 60/40 split-folding bench with leather seating surfaces, 3-passenger with center armrest with storage
• Console, floor, with damped-door storage covers, large storage bin, analog clock, dual cup holders and rear seat audio
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row
• Steering wheel, color-keyed with wood and leather-wrapped rim
• Steering wheel controls, mounted audio and Driver Information Center controls
• Pedals, power-adjustable for accelerator and brake
• Driver Information Center, with programmable personalization features such as door locking and unlocking, a trip computer that contains trip odometer and individual tire pressure readouts, fuel information such as range, average mpg, gallons used and oil life and a message center that displays dozens of system messages such as low fuel, door ajar, security, seat belt reminder, low coolant and oil pressure low
• Tire pressure monitoring system (does not apply to spare tire)
• Windows, power with driver and front passenger Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Tow/haul mode selector, button located at end of shift lever
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III+
• Remote vehicle start
• Rear Parking Assist, Ultrasonic with rearview LED display, audible warning and instrument panel-mounted shutoff switch
• OnStar, 1-year of Directions & Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details.)
• Universal Home Remote, includes garage door opener, 3-channel programmable
• Audio system, AM/FM/XM stereo with CD/DVD/MP3 player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), Digital Signal Processing and 2 slots, top slot for DVD audio/video and CD audio, bottom slot for 6-disc CD changer and MP3 player
• Audio system feature, Bose 5.1 Studio Surround Sound system with 8 speakers
• Audio system controls, rear with 2 headphone jacks (headphones not included) and controls for volume, station selection and media
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation. (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com.)
• Antenna, fixed-mast
• Climate control, dual-zone automatic with individual climate settings for driver and right-front passenger
• Defogger, rear-window electric
• Cup holders, quad front and dual second row
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Console, overhead deluxe, with reading lights and (UG1) Universal Home Remote (Includes sunroof controls when (CF5) power sunroof is ordered.)
• Visors, driver and front passenger illuminated vanity mirrors with extenders
• Lighting, interior courtesy with theater dimming

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• Air bags, dual-stage frontal, driver and right-front passenger with Automatic Occupant Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Automatic Occupant Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and outboard rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Automatic Occupant Sensing System, sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Automatic Occupant Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts, first and second row belts to body
• StabiliTrak, vehicle stability enhancement system with Rollover Mitigation, includes disable switch
• Traction control, all-speed, electronic
• Daytime Running Lamps, with automatic exterior lamp control

ENGINE, VORTEC 6.2L VARIABLE VALVE TIMING V8 SFI ($0)

• (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [565.4 N-m] @ 4300 rpm) (STD)

• 4-Wheel Disc Brakes
• 6-Speed A/T
• 8 Cylinder Engine
• A/C
• ABS
• Adjustable Pedals
• Air Suspension
• All Wheel Drive
• AM/FM Stereo
• Auto-Dimming Rearview Mirror
• Automatic Headlights
• Back-Up Camera
• Bucket Seats
• CD Player
• Climate Control
• Conventional Spare Tire
• Cruise Control
• Daytime Running Lights
• Driver Adjustable Lumbar
• Driver Air Bag
• Driver Illuminated Vanity Mirror
• Driver Vanity Mirror
• Engine Immobilizer
• Floor Mats
• Fog Lamps
• Front Head Air Bag
• Front Reading Lamps
• Gasoline Fuel
• Heated Mirrors
• Heated Seats
• Heated Steering Wheel
• HID headlights
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Leather Seats
• Leather Steering Wheel
• Locking/Limited Slip Differential
• Luggage Rack
• MP3 Player
• Multi-Zone A/C
• Navigation System
• Pass-Through Rear Seat
• Passenger Adjustable Lumbar
• Passenger Air Bag
• Passenger Illuminated Visor Mirror
• Passenger Vanity Mirror
• Power Door Locks
• Power Driver Seat
• Power Mirror(s)
• Power Passenger Seat
• Power Steering
• Power Windows
• Privacy Glass
• Rain Sensing Wipers
• Rear Defrost
• Rear Head Air Bag
• Rear Parking Aid
• Rear Seat Audio Controls
• Remote Start
• Running Boards/Side Steps
• Satellite Radio
• Seat Memory
• Stability Control
• Steering Wheel Audio Controls
• Telematics
• Tire Pressure Monitor
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hitch
• Tow Hooks
• Traction Control
• Transmission Overdrive Switch
• Trip Computer
• Universal Garage Door Opener
• Variable Speed Intermittent Wipers

• Mileage
• EPA Fuel Economy Est - City (MPG): 12
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2919
• Curb Weight - Rear (lbs): 2919
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 760
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-link
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QXK
• Rear Tire Order Code: QXK
• Spare Tire Order Code: ZVL
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/o rear bumper (in): 222.0
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 74.5
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 63.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 60.3
• Ext'd Cab Cargo Volume (ft³): 108.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 40.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 62.3
• Summary

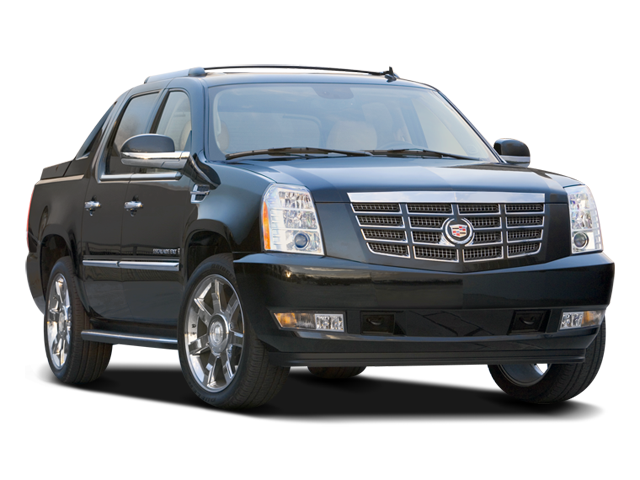

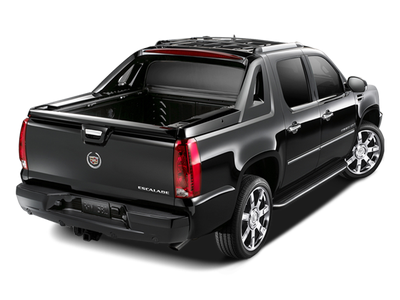

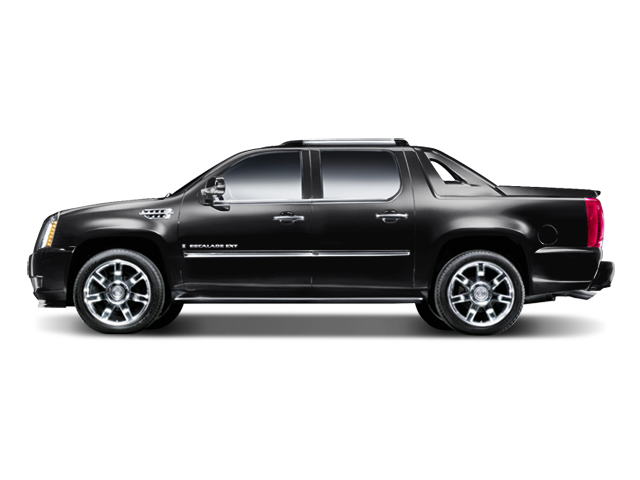

• Vehicle Name: Cadillac Escalade EXT
• Body Style: 5 Door Crew Cab
